Chart Types

BenchBox provides chart types optimized for benchmarking narratives, rendered as ASCII art directly in the terminal. Each chart is designed for a specific analytical purpose and can be generated via benchbox visualize or programmatically through the Python API. No external dependencies are required.

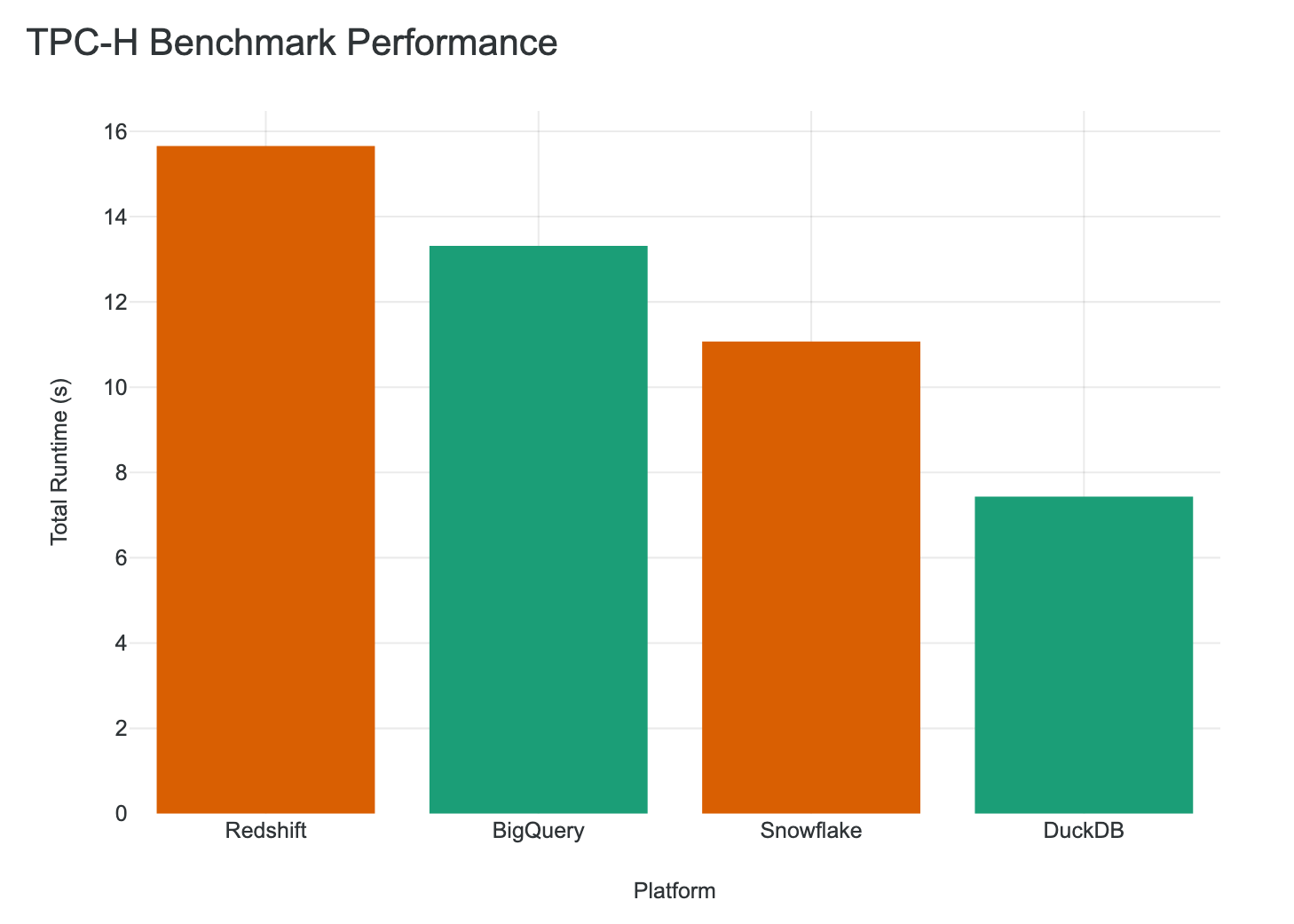

Performance Bar Chart

Purpose: Compare execution times across platforms, runs, or configurations. The most common chart for “which platform is fastest?” questions.

Key Features:

  • Automatic best/worst highlighting (green for fastest, red for slowest)
  • Fractional-block precision (Unicode ▏▎▍▌▋▊▉█ characters)
  • Automatic sorting by performance (configurable)
  • Platform labels with execution time annotations
Performance Comparison (ms)
──────────────────────────────────────────────────────────
DuckDB      ██████████████████                      142.3
Polars      ████████████                             98.7
SQLite      ████████████████████████████████████     285.1
Pandas      ██████████████████████████████████████   320.5


Legend: ■ Best  ■ Worst

TPC-H SF1 comparison across 4 platforms showing Polars as fastest (green) and Pandas as slowest (red)

Data Requirements:

  • total_time_ms or avg_time_ms per result
  • At least 1 result (multiple for comparison)

Best For:

  • Platform shootouts (“DuckDB vs Snowflake”)
  • Before/after optimization comparisons
  • Multi-benchmark summaries

Power@Size Bar Chart

Purpose: Compare TPC Power@Size scores across platforms or versions. Power@Size is a TPC-defined throughput metric expressed in queries-per-hour at a given scale factor - higher is better.

Key Features:

  • Automatic best/worst highlighting (highest score = green, lowest = red)
  • Longer bars indicate better throughput performance (inverted vs execution time)
  • Silently excluded for non-TPC benchmarks (no Power@Size in result)
Power@Size Comparison (Power@Size)
──────────────────────────────────────────────────────────
DuckDB 1.5.0-dev ███████████████████████████████████████   669.3K
DuckDB 1.4.4     ██████████████████████████████████████    630.9K
DuckDB 1.3.2     ███████████████████████████████████████   614.9K
DuckDB 1.1.3     ██████████████████████████████████████    594.7K
DuckDB 1.2.2     ███████████████████████████████████       500.5K
DuckDB 1.0.0     ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓               385.8K

TPC-DS SF=10 version comparison showing Power@Size progression from v1.0.0 to v1.5.0-dev

Data Requirements:

  • summary.tpc_metrics.power_at_size in result JSON (present in TPC-H and TPC-DS runs)
  • At least 1 result (multiple for comparison)

Best For:

  • TPC-H and TPC-DS version-over-version comparisons
  • Tracking throughput improvement across platform upgrades
  • Executive summaries of TPC benchmark results

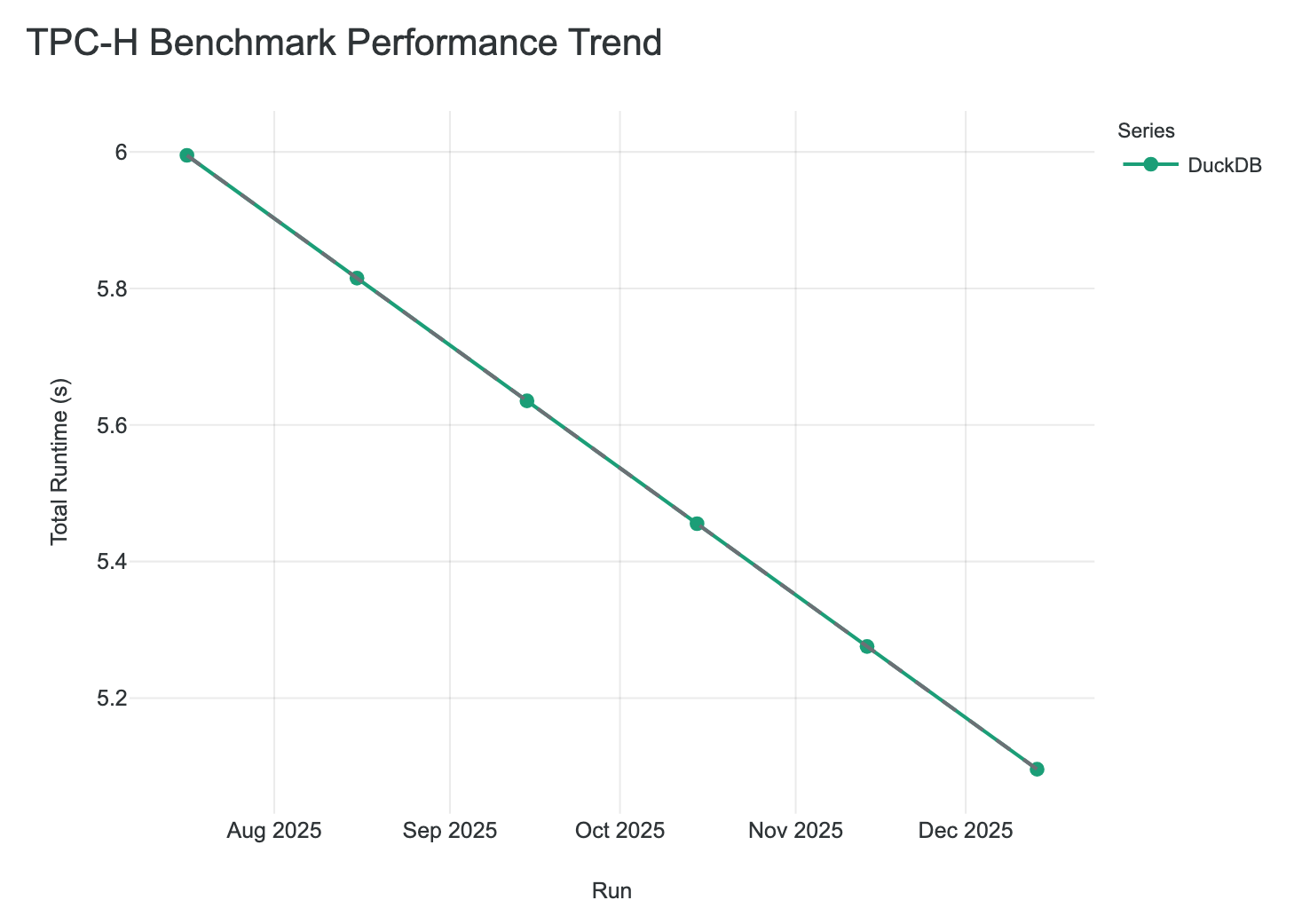

Time-Series Line Chart

Purpose: Track performance evolution over time, across versions, or across sequential runs. Essential for regression detection and trend analysis.

Key Features:

  • Multi-line support for comparing platforms over time
  • Least-squares regression trend overlay
  • Unique marker per series (*, +, o, x, ^, v)
  • Automatic legend with series names
Performance Trend (ms)
──────────────────────────────────────────────────────────
     │
 350 │*
     │  *
 300 │    *
     │      *
 250 │        *         +
     │          *    +     +
 200 │            *           +
     │                           +
 150 │
     └────────────────────────────────────────────────────
      v0.8   v0.9   v1.0   v1.1   v1.2   v1.3


Legend:
  ─*─ DuckDB
  ─+─ Polars

DuckDB and Polars performance over 6 releases showing improvement trends

Data Requirements:

  • At least 2 results with timestamps or execution IDs
  • total_time_ms per result

Best For:

  • Version-over-version performance tracking
  • Regression detection in CI/CD
  • Long-term platform evolution stories

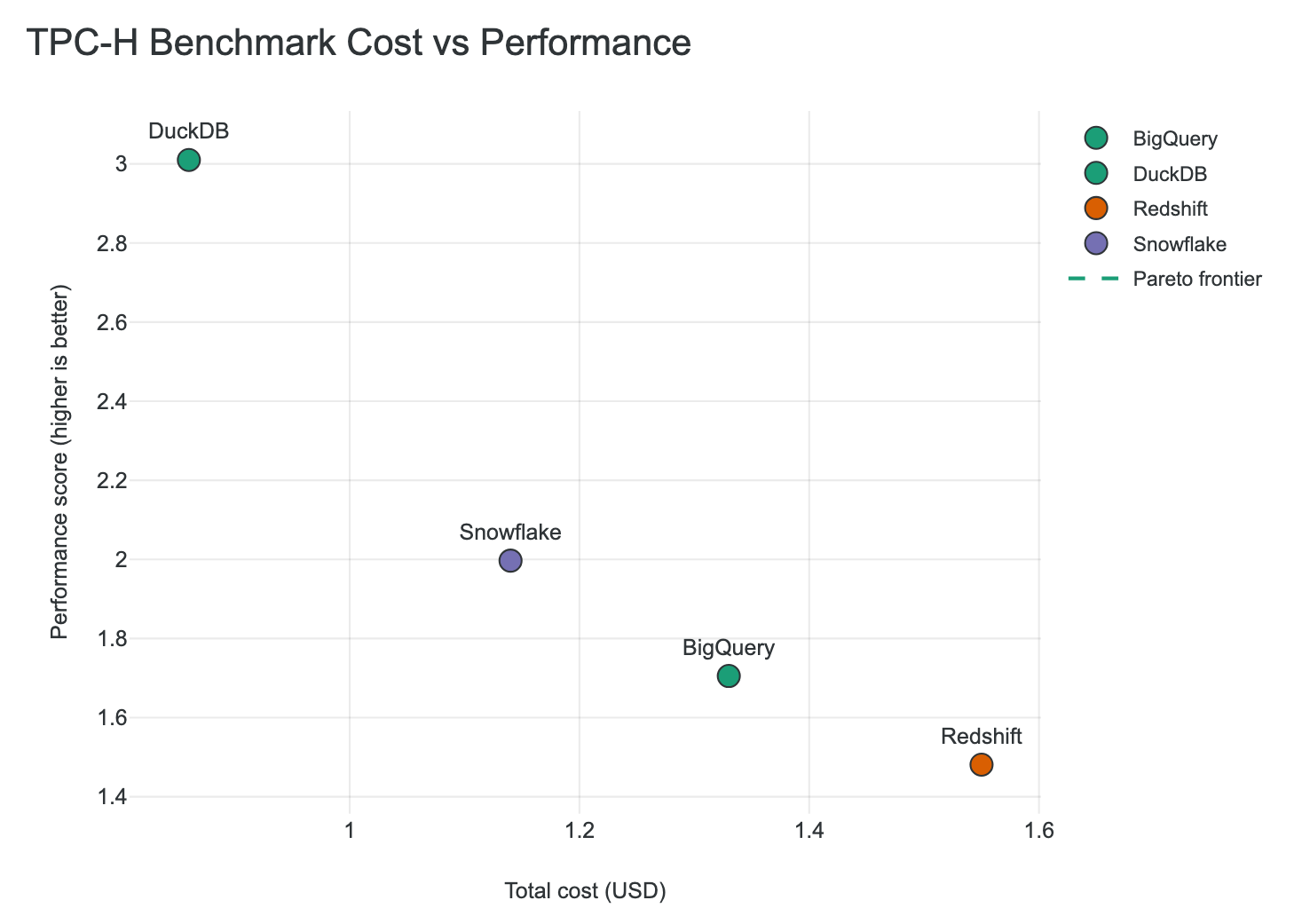

Cost-Performance Scatter Plot

Purpose: Visualize the price/performance tradeoff with Pareto frontier highlighting. Critical for cloud platform ROI analysis.

Key Features:

  • Pareto frontier highlighting (optimal cost-performance points marked with ◆)
  • Platform labels positioned at data points
  • Performance score calculation (queries/hour or inverse latency)
  • Auto-scaled axes with padding
Cost vs Performance
──────────────────────────────────────────────────────────
Perf │
(qph)│                                    * Redshift
 400 │
     │                          ◆ DuckDB
 300 │                    ◆ Polars
     │              ──────────────────── Pareto frontier
 200 │        * Pandas
     │
 100 │  * SQLite
     │
   0 └────────────────────────────────────────────────────
     $0       $50      $100     $150     $200     $250
                     Cost (USD)

Platform comparison showing Pareto frontier highlighting cost-efficient options

Data Requirements:

  • cost_summary.total_cost per result
  • Performance metric (avg_time_ms or total_time_ms)

Best For:

  • Cloud platform cost comparisons
  • ROI analysis for platform selection
  • “Bang for your buck” narratives

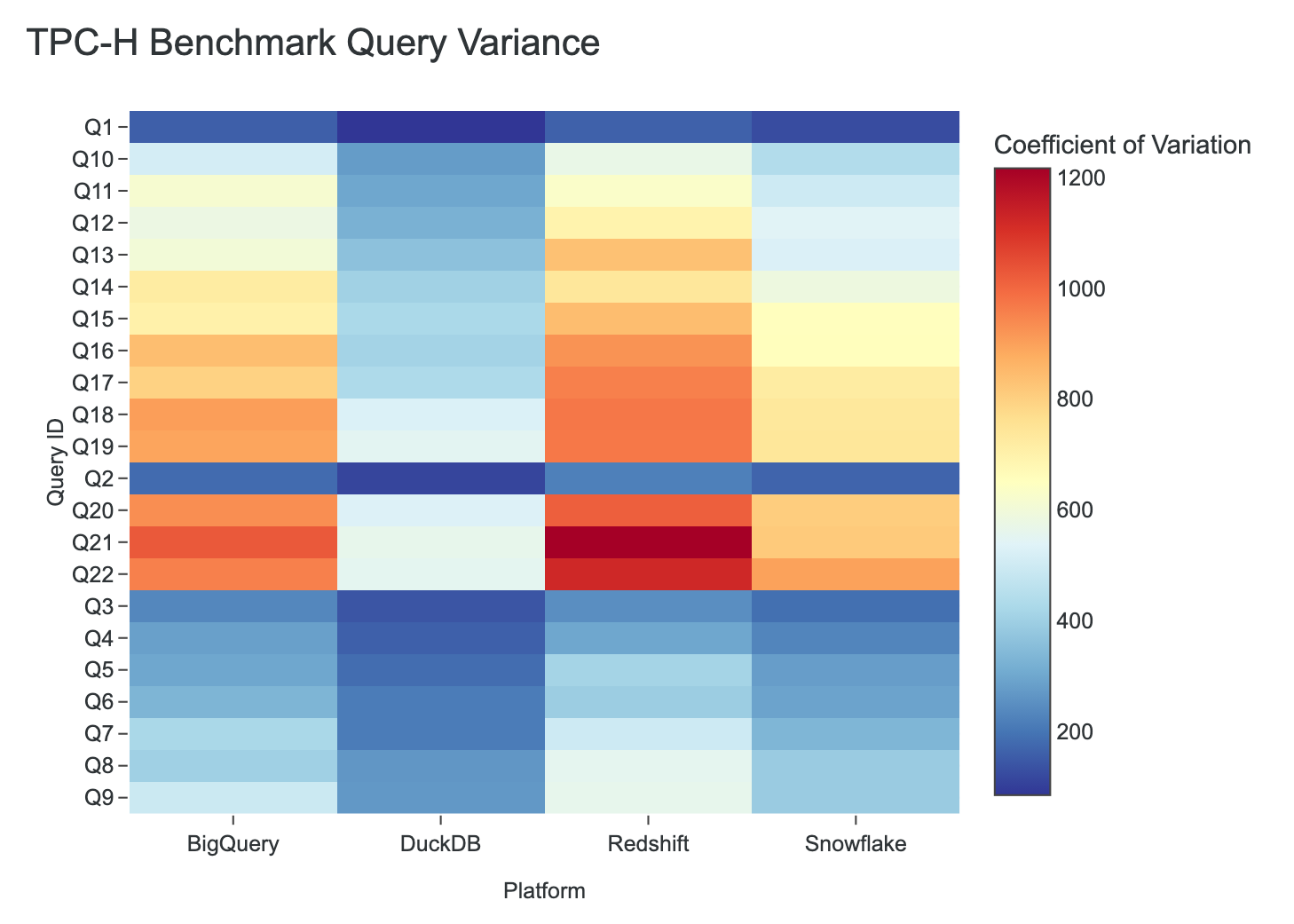

Query Variance Heatmap

Purpose: Show per-query performance patterns across platforms. Reveals which queries each platform handles well or poorly.

Key Features:

  • Query (rows) × Platform (columns) grid
  • 5-level intensity scale (░ ▒ ▓ █) from fast to slow
  • Color gradient: green (fast) → yellow (medium) → red (slow)
  • Automatic sorting by query ID
Query Execution Heatmap (ms)
──────────────────────────────────────────────────────────
            DuckDB    Polars    Pandas
Q1    │     ░░ 12.3   ▒▒ 15.2   ▓▓ 45.8
Q2    │     ░░  8.5   ░░  9.1   ▒▒ 22.4
Q3    │     ▒▒ 25.1   ░░ 18.3   ██ 85.2
Q4    │     ░░ 11.2   ▓▓ 40.5   ██120.1
Q5    │     ▒▒ 30.8   ▒▒ 28.9   ▓▓ 52.3
Q6    │     ░░  5.1   ░░  4.8   ░░  8.2


Scale: ░ ▒ ▓ █ (fast → slow)
Range: 4.8 - 120.1 ms

TPC-H per-query heatmap showing performance patterns across platforms

Data Requirements:

  • At least 2 platforms with per-query execution_time_ms
  • Query results with query_id identifiers

Best For:

  • Identifying problematic queries per platform
  • TPC-H/TPC-DS per-query analysis
  • Query optimization targeting

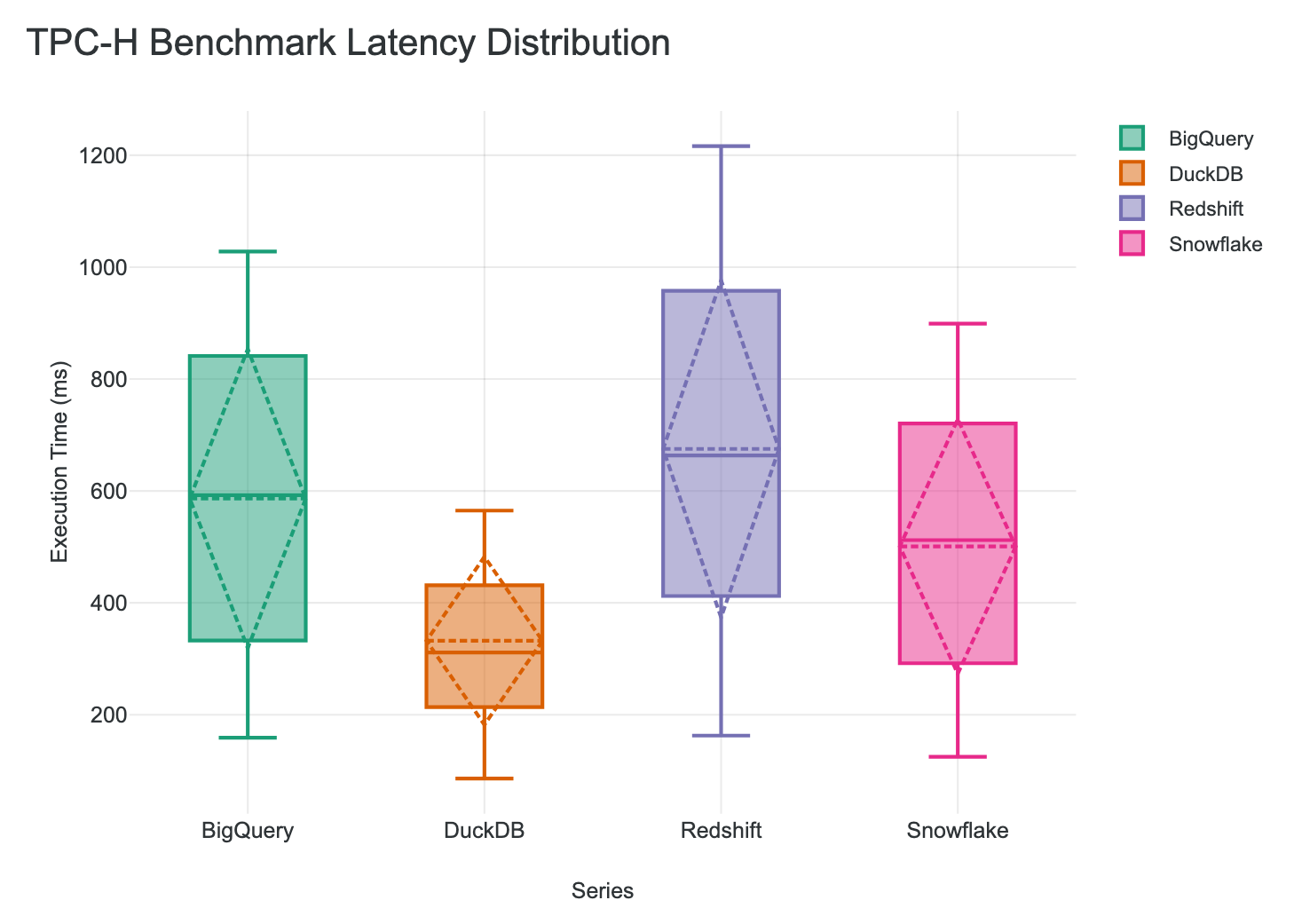

Distribution Box Plot

Purpose: Show latency distributions to understand variance, outliers, and consistency beyond simple averages.

Key Features:

  • Box plot with quartiles (Q1, median, Q3)
  • Whiskers at min/max with cap characters (╷ ╵)
  • Outlier markers (o) at actual scaled positions
  • Statistics summary below plot
Latency Distribution (ms)
──────────────────────────────────────────────────────────
            ╷     ┌──────┬──────┐           ╷
DuckDB      ├─────┤      │      ├───────────┤
            ╵     └──────┴──────┘           ╵
            ╷   ┌────┬────────┐       ╷
Polars      ├───┤    │        ├───────┤
            ╵   └────┴────────┘       ╵
            ╷          ┌──────────┬─────────────┐     ╷
Pandas      ├──────────┤          │             ├─────┤  o
            ╵          └──────────┴─────────────┘     ╵
────────────┼──────────┼──────────┼──────────┼────────┼──
            0         100        200        300      400  ms


Statistics:
  DuckDB: median=120.5, mean=125.3, std=45.2
  Polars: median=85.2, mean=90.1, std=32.8
  Pandas: median=210.8, mean=225.4, std=78.5

Latency distribution comparison showing Polars as most consistent (tightest box)

Data Requirements:

  • Per-query execution_time_ms values
  • Multiple queries per platform for meaningful distribution

Best For:

  • Consistency analysis (low variance = predictable performance)
  • Outlier detection
  • SLA compliance stories (P95/P99 analysis)

Query Latency Histogram

Purpose: Display per-query execution latency with one bar per query. Short query IDs render as vertical bars; long descriptive query names render as horizontal bars so labels remain readable. Provides immediate visual insight into which queries are fastest/slowest and the overall latency distribution pattern.

Key Features:

  • One bar per query showing execution time
  • Horizontal layout for long labels such as Primitives query names
  • Automatic best/worst highlighting (green for fastest, orange for slowest)
  • Mean reference line for quick comparison
  • Natural query ID sorting (Q1, Q2, Q10 - not Q1, Q10, Q2)
  • Auto-splits large query sets - when queries exceed 33, automatically generates multiple charts (e.g., TPC-DS 99 queries → 3 charts)
  • Multi-platform grouped bar support for comparisons
Query Latency Histogram (Execution Time (ms))
──────────────────────────────────────────────────────────
     150 │                              ██
         │                              ██
     100 │          ██                  ██    ██
         │    ██    ██    ██            ██    ██
      50 │    ██    ██    ██    ██      ██    ██    ██
         │    ██    ██    ██    ██      ██    ██    ██
       0 └────────────────────────────────────────────────
           Q1   Q2   Q3   Q4   Q5   Q6   Q7   Q8


····· Mean: 87.5 ms


Legend: ■ Best  ■ Worst

Data Requirements:

  • Per-query execution_time_ms values
  • Query results with query_id identifiers
  • Aggregates multiple iterations per query (mean latency)

Best For:

  • Quick identification of slow/fast queries
  • TPC-DS (99 queries) and ClickBench (43 queries) analysis
  • Spotting outlier queries that need optimization
  • Per-query comparison across platforms

Chart Splitting: For large benchmarks, the histogram automatically splits into readable chunks:

BenchmarkQueriesCharts Generated
TPC-H221 chart
SSB131 chart
ClickBench432 charts (1-33, 34-43)
TPC-DS993 charts (1-33, 34-66, 67-99)

Comparison Bar Chart

Purpose: Side-by-side paired bars per query showing baseline vs comparison performance. Essential for before/after analysis.

Key Features:

  • Paired rows per query: baseline bar + comparison bar
  • Inline percentage change (green for improvement, red for regression)
  • Scale note showing value per block character
  • Handles outlier truncation with overflow indicator
SQL vs DataFrame Comparison (ms)
──────────────────────────────────────────────────────────
Q1   SQL  ████████████████████████  240.5
     DF   ██████████████████        180.2       -25.1%
Q2   SQL  ████████████████          160.0
     DF   ████████████████████████  240.8       +50.5%
Q3   SQL  ████████████████████      200.0
     DF   ████████████████          160.0       -20.0%
──────────────────────────────────────────────────────────
each █ ≈ 10.0ms
  improvement (negative %)   regression (positive %)

Data Requirements:

  • Two result files (baseline + comparison)
  • Per-query execution_time_ms values

Best For:

  • Before/after optimization comparisons
  • SQL vs DataFrame API performance
  • Version-over-version per-query analysis

Diverging Bar Chart

Purpose: Percentage change bars centered on zero, showing improvements to the left and regressions to the right. Sorted by magnitude for quick triage.

Key Features:

  • Left side (green): improvements; right side (red): regressions
  • Fill intensity based on magnitude (░ weak, ▒ medium, ▓ strong)
  • Overflow arrows (──►) for extreme outliers beyond clipping threshold
  • Summary line with improvement/stable/regression counts
Regression / Improvement Distribution
──────────────────────────────────────────────────────────
                  Faster  |  Slower
Q6   ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓ |                        -57.2%
Q14  ▓▓▓▓▓▓▓▓▓▓▓         |                        -38.1%
Q3             ░░░░░░░░░░ |                         -5.2%
Q1                        | ░░░░░░░░░               +4.8%
Q17                       | ▒▒▒▒▒▒▒▒▒▒▒▒▒▒        +23.4%
Q21                       | ▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒──►   +726.0%
──────────────────────────────────────────────────────────
  2 improved  1 stable  3 regressed

Data Requirements:

  • Two result files (baseline + comparison)
  • Per-query execution_time_ms values

Best For:

  • Regression triage after upgrades
  • Identifying queries that improved vs degraded
  • Quick visual summary of change distribution

Summary Box

Purpose: Key statistics in a bordered panel providing an at-a-glance overview of benchmark results or a comparison between two runs.

Key Features:

  • Bordered box with Unicode box-drawing characters
  • Comparison mode: baseline → comparison with percentage change
  • Color-coded percentages (green for improvement, red for regression)
  • Best/worst query callouts
┌──────────────────────────────────────────────┐
│            Benchmark Summary                 │
├──────────────────────────────────────────────┤
│  Geo Mean:  142.3ms → 98.7ms         -30.6% │
│  Total:     3.2s → 2.1s              -34.4% │
│  Queries:   22                               │
├──────────────────────────────────────────────┤
│  5 improved  12 stable  5 regressed          │
├──────────────────────────────────────────────┤
│  Best:  Q6 (-57.2%), Q14 (-38.1%)           │
│  Worst: Q21 (+726%), Q17 (+23.4%)           │
└──────────────────────────────────────────────┘

Data Requirements:

  • At least 1 result file (2 for comparison mode)
  • total_time_ms and/or per-query execution_time_ms

Best For:

  • Executive summaries at the top of reports
  • CI/CD log output (quick pass/fail context)
  • Pairing with detailed charts for full analysis

Chart Selection Guide

ScenarioRecommended Chart
“Which platform is fastest?”Performance Bar
“What is the TPC throughput score?”Power@Size Bar
“How has performance changed over time?”Time-Series Line
“Which platform has best price/performance?”Cost-Performance Scatter
“Which queries does each platform struggle with?”Query Variance Heatmap
“Which individual queries are slowest?”Query Latency Histogram
“How consistent is query latency?”Distribution Box
“How did each query change between runs?”Comparison Bar
“Which queries regressed or improved?”Diverging Bar
“Give me a quick summary”Summary Box
“Complete platform evaluation”Use --template flagship for all

Data Requirements Summary

Chart TypeRequired FieldsMinimum Results
Performance Bartotal_time_ms or avg_time_ms1
Power@Size Barsummary.tpc_metrics.power_at_size1 (TPC benchmarks only)
Time-Series Linetotal_time_ms + timestamps2
Cost-Performance Scattercost_summary.total_cost + timing1 (2+ useful)
Query Variance Heatmapqueries[].execution_time_ms2 platforms
Query Latency Histogramqueries[].execution_time_ms1
Distribution Boxqueries[].execution_time_ms1
Comparison Barqueries[].execution_time_ms2 (baseline + comparison)
Diverging Barqueries[].execution_time_ms2 (baseline + comparison)
Summary Boxtotal_time_ms or queries[]1 (2 for comparison)

BenchBox is open source under the MIT License.
