Customization

Tags advanced guide visualization

BenchBox visualization supports extensive customization for themes, colors, sizing, and export formats.

Themes

BenchBox provides light and dark themes optimized for different contexts:

benchbox visualize results/*.json --theme light   # Default, best for print/blog
benchbox visualize results/*.json --theme dark    # Best for dark-mode sites/presentations

Theme Comparison

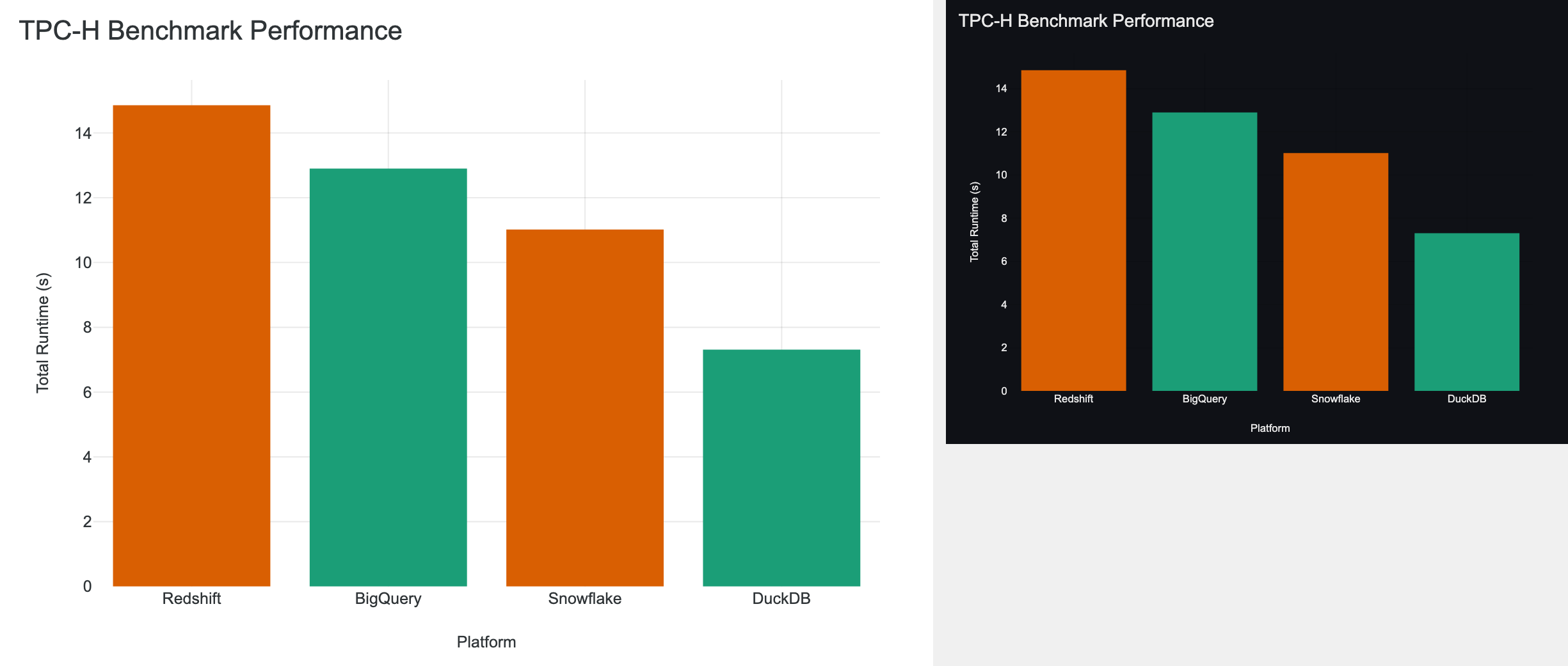

Left: Light theme (default) optimized for print and light backgrounds. Right: Dark theme for presentations and dark-mode websites.

Theme Differences:

Aspect

Light Theme

Dark Theme

Background

White (#ffffff)

Dark gray (#1e1e1e)

Text

Dark gray (#2f3437)

Light gray (#e0e0e0)

Grid lines

Light gray (rgba(0,0,0,0.08))

Dark gray (rgba(255,255,255,0.1))

Chart palette

Same colorblind-safe colors

Same colorblind-safe colors

Color Palette

BenchBox uses a colorblind-safe categorical palette designed for data visualization:

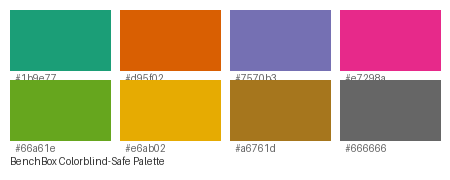

Color Palette Swatches

BenchBox’s 8-color palette: colorblind-friendly and WCAG AA compliant

Palette Colors:

Color

Hex

Usage

Teal

#1b9e77

Primary series, best performer

Orange

#d95f02

Secondary series

Purple

#7570b3

Tertiary series

Pink

#e7298a

Fourth series

Green

#66a61e

Fifth series

Yellow

#e6ab02

Sixth series

Brown

#a6761d

Seventh series

Gray

#666666

Eighth series

Special Colors:

Purpose

Color

Hex

Best performer

Green

#28a745

Worst performer

Red

#dc3545

Trend line

Gray

#6b7075

Pareto frontier

Green

#28a745

Export Formats

BenchBox supports four export formats, each optimized for different use cases:

--format png          # Raster image, universal compatibility
--format svg          # Vector graphics, infinitely scalable
--format pdf          # Print-ready document format
--format html         # Interactive chart with hover/zoom
--format png,svg,html # Multiple formats in one command

Format Comparison:

Format

Best For

File Size

Interactive

Scalable

PNG

Blog posts, social media

Medium

No

No (raster)

SVG

Print, high-res displays

Small

No

Yes (vector)

PDF

Reports, presentations

Medium

No

Yes (vector)

HTML

Websites, dashboards

Larger

Yes

Yes

DPI and Resolution

Control output resolution with --dpi:

--dpi 72    # Web/screen (smaller files, 1280×720 default)
--dpi 150   # Medium quality
--dpi 300   # Print quality (default, 1280×720 at 300 DPI)
--dpi 600   # Ultra high quality (large files)

Resolution Guidelines:

Use Case

Recommended DPI

Resulting Size

Web/blog images

72-150

~100-300 KB

Social media

72

~50-150 KB

Print/PDF reports

300

~500 KB-2 MB

Large format print

600

~2-5 MB

Chart Sizing

Default canvas: 1280×720 pixels (16:9 aspect ratio)

This size is optimized for:

  • Blog post hero images

  • Presentation slides

  • Social media (with cropping)

For custom sizing, use the Python API:

from benchbox.core.visualization import ResultPlotter

plotter = ResultPlotter.from_sources(["results.json"])
# Custom sizing requires modifying theme settings

Typography

BenchBox uses system fonts with web-safe fallbacks:

  • Primary: Source Sans Pro

  • Fallback: Open Sans, Helvetica Neue, Arial, sans-serif

Font Sizes:

  • Title: 18pt

  • Axis labels: 14pt

  • Tick labels: 12pt

  • Legend: 12pt

  • Annotations: 10pt

Accessibility

BenchBox visualizations are designed for accessibility:

Color Accessibility:

  • Palette passes WCAG AA contrast requirements

  • Colorblind-safe: distinguishable for deuteranopia, protanopia, tritanopia

  • Patterns available for additional differentiation (Plotly default hatching)

Screen Reader Support:

  • HTML exports include structured data for screen readers

  • Use export metadata to generate alt text for images

  • Consistent naming conventions for automated descriptions

Contrast Ratios:

  • Text on background: minimum 4.5:1

  • Chart elements on background: minimum 3:1

Advanced: Python API Customization

For fine-grained control, use the Python API directly:

from benchbox.core.visualization import (
    PerformanceBarChart,
    BarDatum,
    get_theme,
    export_figure,
)

# Custom theme modifications
theme = get_theme("light")
theme.palette = ["#ff0000", "#00ff00", "#0000ff"]  # Custom colors

# Create chart with custom settings
data = [
    BarDatum(label="Platform A", value=100.5, is_best=True),
    BarDatum(label="Platform B", value=150.2),
    BarDatum(label="Platform C", value=200.1, is_worst=True),
]

chart = PerformanceBarChart(
    data=data,
    title="Custom Chart Title",
    metric_label="Custom Y-Axis Label",
    sort_by="label",  # or "value"
    barmode="group",  # or "stack"
)

fig = chart.figure()
export_figure(fig, output_dir="./", base_name="custom", formats=["png", "html"])

Configuration Summary

Option

CLI Flag

Default

Values

Theme

--theme

light

light, dark

Format

--format

png,html

png, svg, pdf, html

DPI

--dpi

300

72-600

Smart selection

--smart/--no-smart

--smart

boolean

Output directory

--output

./charts

path
